Description

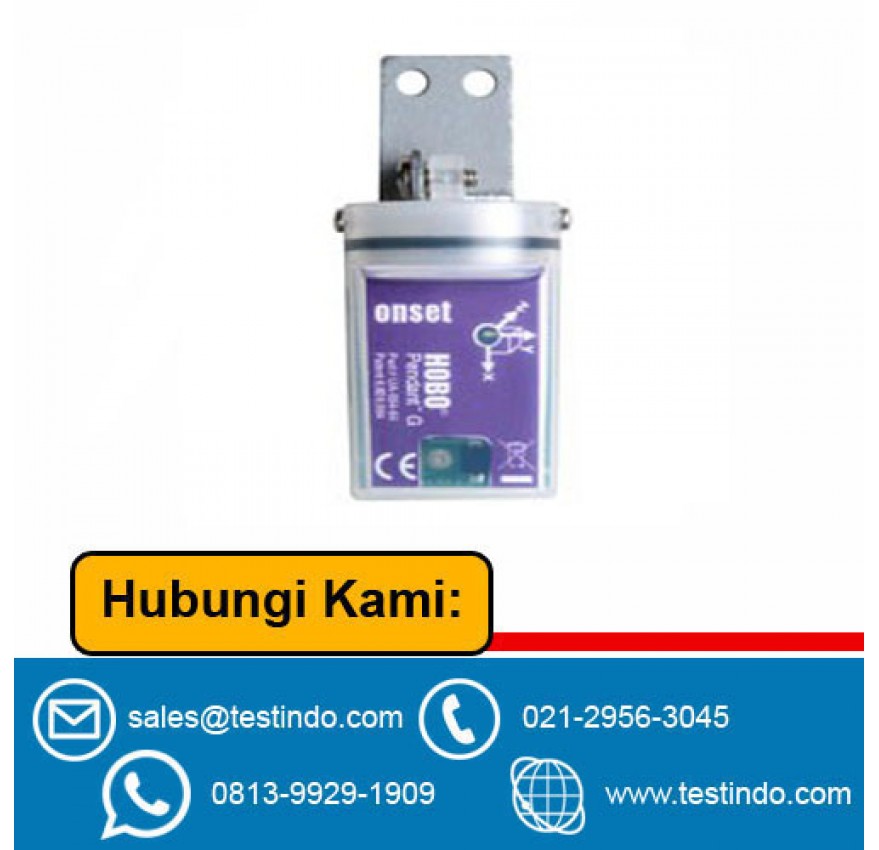

Ukur gerak 3 dimensi, seperti aktivitas olah raga atau terapi medis sesuai dengan data logger HOBO® Pendant G. Dengan logger ini, pengguna dapat mengukur akselerasi dan perpindahan sudut pada 1, 2 atau 3 sumbu. Gunakan data ini untuk memantau aktivitas dan meningkatkan kinerja.
Feature
- 3-Channels Measuring X, Y and Z Axes
- ±3G Measurement Range and ±2.5% FS Accuracy
- 1 Year User-Replaceable Coin Cell Lithium Battery
- Waterproof Housing for Use in Outdoor or Condensing Environments Up to 30 Meters (100 ft)
- Stores up to 64,000 Measurements (21,800 per Channel)
Spesification
Number of Channels | Selectable 1, 2 or 3 |
Measurement Range | ±3G |
Accuracy | ±2.5% FS at 25°C (77°F) Factory Calibrated |
8-bit Resolution | 0.025 G, 0.24m/sec2 (0.8ft/sec2) |
Memory | 64K Measurements (approx 21.8K combined x,y,z axis readings or events) |
Logging Interval | NORMAL mode: 1 sec to 18 hrs FAST mode: 0.01 sec to 0.99 sec (user-selectable) |
Download Speed | 30 seconds via Optic USB for 64K memory |
Time Accuracy | ±1 min/month at 25°C (77°F) |
Operating Range | -20°C to 70°C (-4°F to 158°F) |
Environment | Waterproof to 30 Meters (100 ft) |
Durability | Drop-proof to 1.5 Meters (5 feet) |
Battery Life | Type: User Replaceable Coin Cell Lithium Battery NORMAL mode: 1 year typical use FAST mode: 7 days @ 100Hz Sampling |
Software Compatibility | HOBOware Version 3.5+ |
OS Compatibility | Windows: Windows 8, 7, Vista and XP (32-Bit and 64-Bit) Mac: OS X 10.6.x, 10.7.x and 10.8.x |
Standards Compliance | CE |
Dimensions | 58mm x 33mm x 23mm (2.3" x 1.3" x 0.9") |
