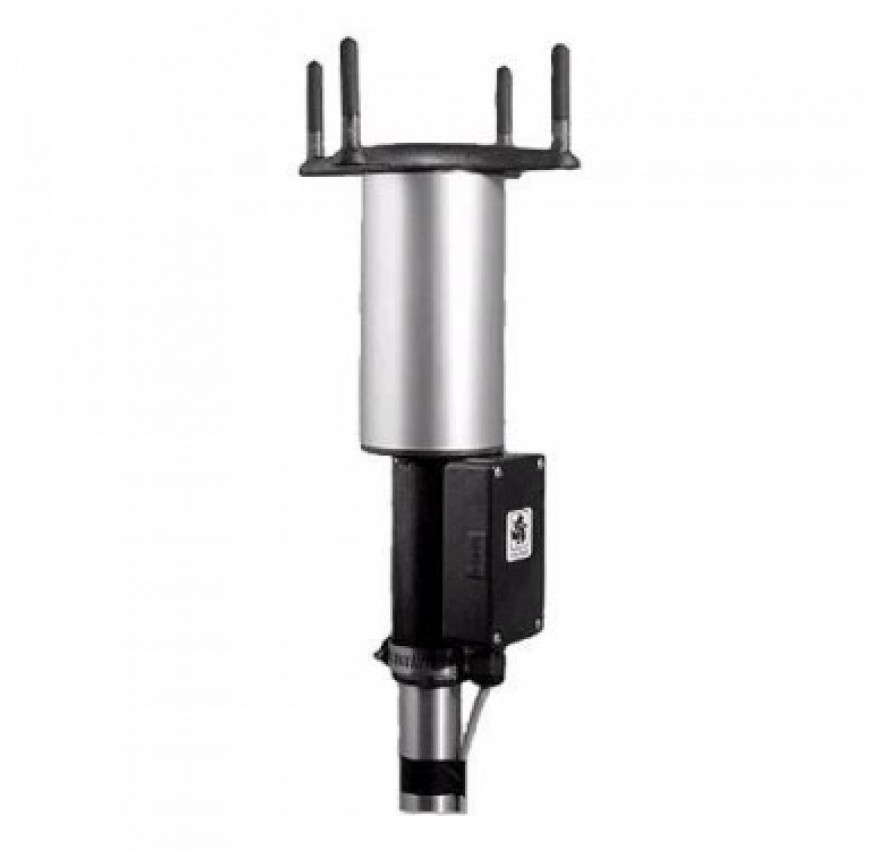

Ultrasonic Wind Sensor 5600-0808

Ultrasonic Wind Sensor 5600-0808



Order

Description

Professional quality wind sensor suitable for a wide range of wind measurement applications. A 2-axis, no-moving-parts wind sensor, ideal for continuously operating general meteorological applications requiring accurate, reliable measurement.


Feature

  • Durable, corrosion-resistant construction with opposing pairs of ultrasonic transducers secured in a streamlined molded frame.
  • Voltage & serial outputs
  • Fully wind-tunnel tested & calibrated to provide accurate wind measurement over a wide operating range.
  • Includes many useful output options.
  • Analog voltage outputs for wind speed & direction.
  • A variety of serial output formats – available including ASCII text, RMYT (compatible with YOUNG displays), NMEA & SDI-12
  • The sensor installs on readily available 1 inch (IPS) pipe. Wiring con­nections are made in a convenient weatherproof junction box; special mounting adapters, connectors and cables are not required.

Spesification

  • WIND SPEED
0 to 70 m/s (0 to 156 mph)
  • Resolution
0.1 m/s
  • Accuracy
(30 m/s) ± 2% or 0.1 m/s (70 m/s) ± 3%
  • Wind Direction
0 to 360 degrees
  • Resolution
1 degree
  • Accuracy
± 2 degrees
  • Time Response (W/S):

  • Time Response (W/D):

  • Serial Output:
RS-232 or RS-485
  • Formats:
ASCII Text, RMYT, NMEA, SDI-12
  • Sampling Frequency:
1 sec to 24 hour interval period is supported
  • Units:
m/s, MPH, Knots, Km/hr
Analog Voltage Outputs:
  • Wind Speed
0 to 5000 mV
  • Wind Direction
0 to 5000 mV
  • Power Requirement
9 to 16 VDC, 30 mA typical (less than 1mA standby)
  • Operating Temperature
-50 to +50 °C
  • Dimensions
34cm high x 17cm wide
  • Weight
0.7 kg (1.5 lb)
  • Shipping Weight
1.6 kg (3.5 lb)
