Description

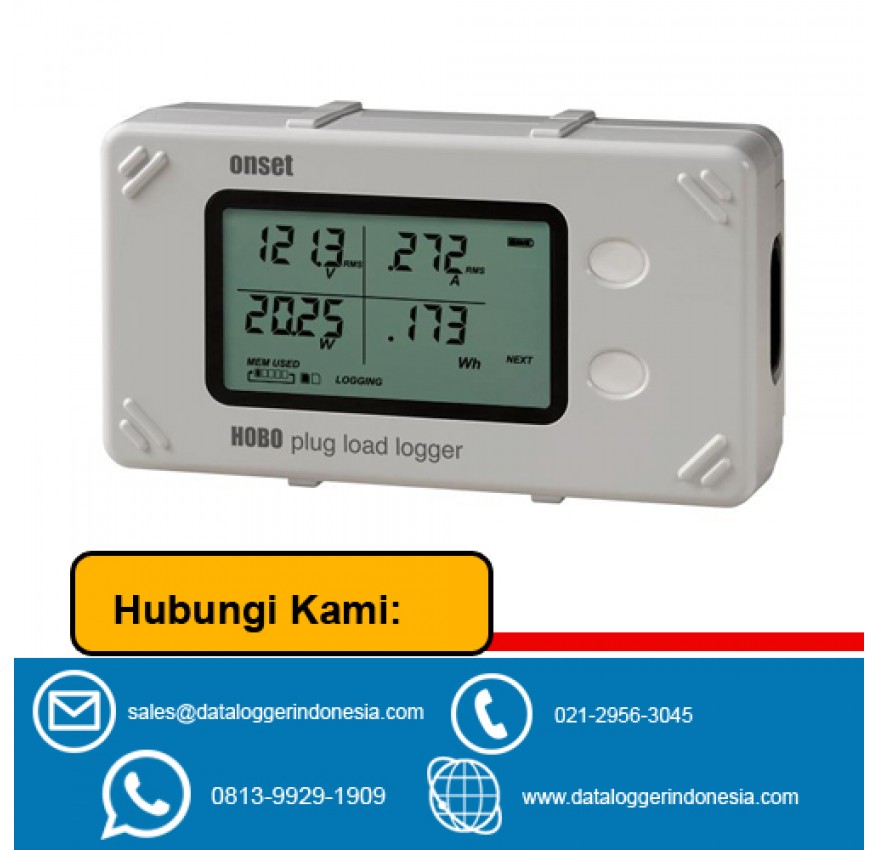

This Plug Load Data Logger is a high-accuracy, easy-to-deploy data logger that measures and records the power and energy consumption of 120V plug loads from office equipment, vending machines, and other devices.
Feature
•0.5% measurement accuracy enables more reliable plug load energy data
•"Meter Mode" provides instant viewing of real-time plug load variables
•Provides time-stamped and totalized load data for detailed energy analysis
•Large memory enables faster logging intervals for more comprehensive plug load profiles
•Battery back-up ensures logged data remains intact in the event of a power outage or load failure
•Full-featured LCD display provides visual diagnostics for easy deployment
Spesification
Note: The UX120-018 logger is intended for use on 15 AMP circuits (NEMA 5-15P) with a working voltage of 120V AC ±10% at 50/60Hz and a max power of 1800W.
- Indoor use only
- Insulation category 2
| RMS Voltage Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||
| RMS Current Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||
| Active Power Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||
| Active Energy Accuracy: | 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle | ||||||||||
| Power Factor Accuracy: | ±0.02 | ||||||||||
| Drift: | Up to 0.5% typical within 1 year | ||||||||||
| Resolution: |
|
||||||||||
| Operating Environment: | Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude | ||||||||||
| Operating Modes: | Meter or logging when launched with HOBOware | ||||||||||
| Logging Rate: | 1 second to 18 hours, 12 minutes, 15 seconds | ||||||||||
| Statistics Sampling Rate: | 60 Hz or 16.67 mS single-cycle | ||||||||||
| Memory Modes: | Wrap when full or stop when full | ||||||||||
| Start Modes: | Immediate, push button, date & time, or next interval | ||||||||||
| Stop Modes: | When memory full, push button, or date & time | ||||||||||
| Restart Mode: | Push button | ||||||||||
| Time Accuracy: | ±1 minute per month at 25°C (77°F), see Plot A | ||||||||||
| Power Source: | Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable | ||||||||||
| Battery Life: | 2 years with line power; 6 months battery only (no line power) with logging rate of 1 minute or greater operating at 25°C (77°F) | ||||||||||
| Memory: | 4 MB (1.4 million measurements, maximum) | ||||||||||
| Download Type: | USB 2.0 interface | ||||||||||
| Full Memory Download Time: | Approximately 1.5 minutes | ||||||||||
| LCD: | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range | ||||||||||
| Size: | 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.) | ||||||||||
| Weight: | 230.8 g (8.14 oz) | ||||||||||
| Ratings: | IP50; UL Listed; UL Listed to Canadian safety standards |
||||||||||
| Calibration: | This device has been calibrated using equipment that has been tested in accordance with ANSI C12.20 0.5%. | ||||||||||
 |
