Description

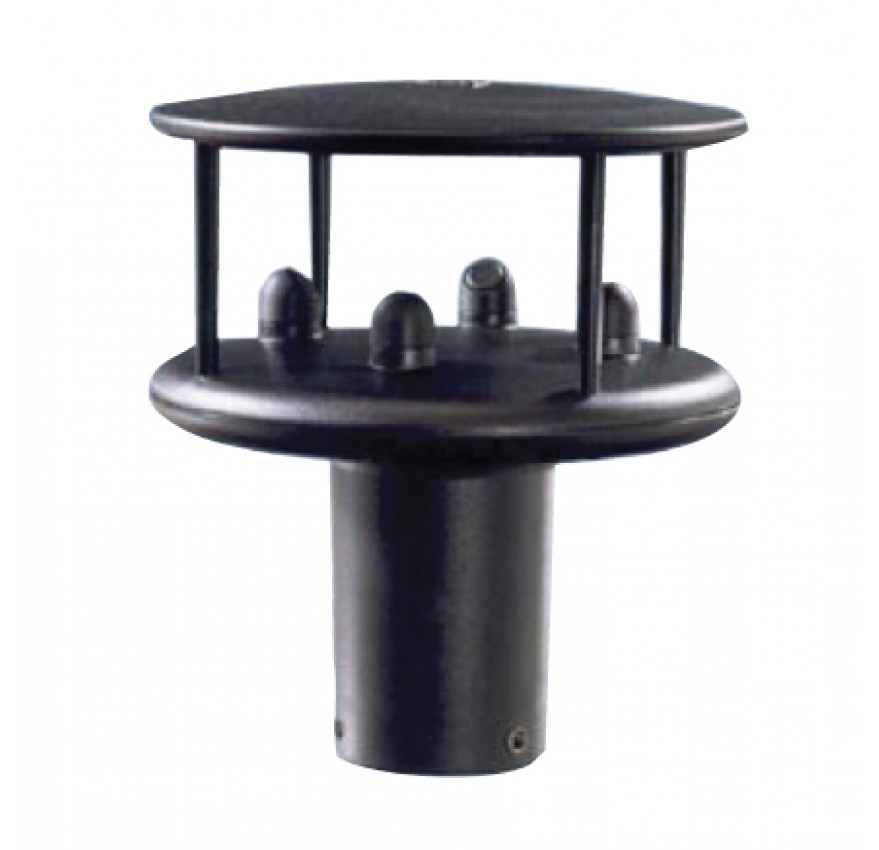

Wind Speed & Direction Sensor


Feature

  • Consistent performance, no accuracy degradation from wear of moving parts
  • Corrosion free, uv resistant material
  • Low start speed (0.01 m/s, 0.09 knots)
  • Maintenance free
  • No calibration required
  • Robust construction
  • Software configurable
  • Status code output
  • True 0° – 360° operation (no dead band on direction output)
  • Wind speed and direction from a single unit
  • Economic to use
  • Land-based or marine applications
  • Multiple WindSonics may be connected via one cable to a single SDI-12 data logger port.
  • Greater distances with SDI-12 than those possible with analogue voltage outputs
  • SDI-12 WindSonic interfaces with any SDI-12 compatible data logger.
  • Reduced risk of data corruption – an SDI-12 digital signal is less likely to be corrupted by external interference than analogue signals.
  • Avoid proprietary protocol or custom wiring and programming of data loggers.
  • Power supply to the WindSonic may be supplied through a single data cable.
  • Widely used in water resource research by government, industry and agricultural organizations

Spesification

WIND SPEED
  • Range
0 – 60 m/s
  • Accuracy
±2%
  • Resolution
0.01 m/s
WIND DIRECTION
  • Range
0° – 360°, no dead band
  • Accuracy
±3°
  • Resolution
 1°
Outputs
  • Output
1, 2 or 4 outputs/second
  • Parameters
Wind speed & direction or UV
  • Units
m/s, knots, mph, kph, ft/min
  • Option 1
RS232
  • Option 2
RS232 + RS422 + RS485
  • Option 3
RS232 + RS422 + RS485 0-5V or 4-20mA
  • Option 4
SDI-12
Anemometer StatusMessage is part of standard output .

Power Requirement
  • Anemometer
9-30Vdc @ 40mA
  • MTBF
10 years
  • Materials
Luran S KR 2861/1C ASA/PC
  • Weight
.5 kg (1 pound)
  • Mounting
Pipe Mounting 44.45 mm (1.75 inches diameter)
Environmental
  • Moisture Protection
IP65
  • Operating Temperature
-35° to +70° C
  • Storage Temperature
-40° to +90° C
  • Operating Humidity
<5% to 100%
  • EMC
BS EN 50081-1: 1992 (EmissionsClass B),  BS EN 50082-1: 1997 (Immunity)
