Description
Product Description

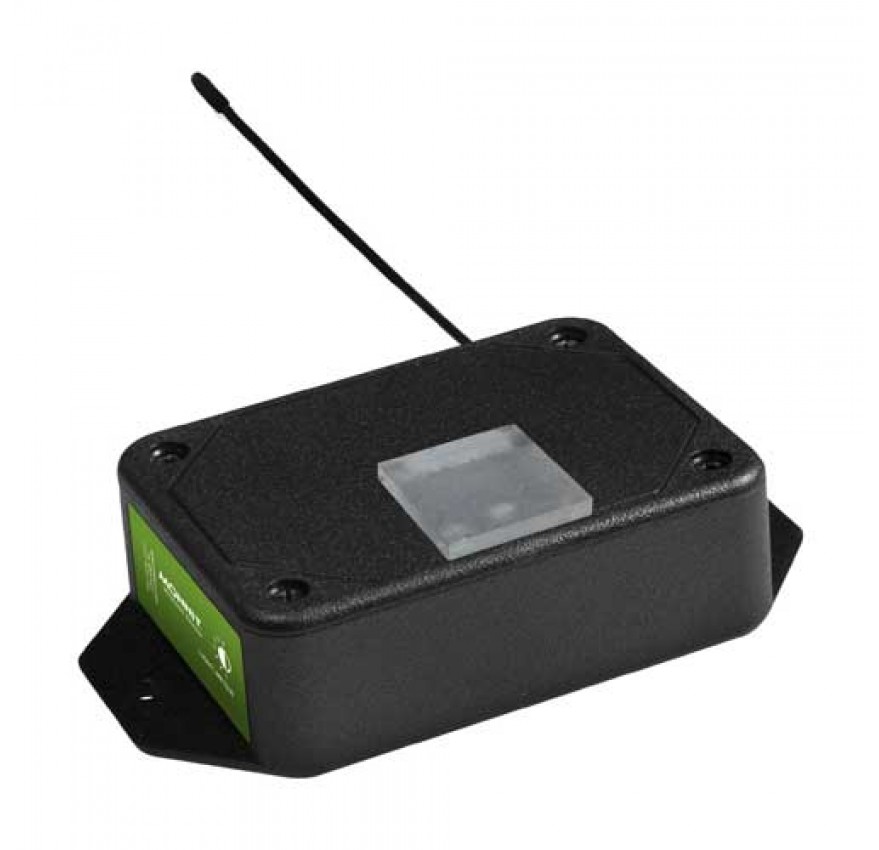

Monnit wireless light meters measure the intensity of light in lux (luminescence/unit area), from 0 – 1000 lux (indoor range). Perfect for light sensitive applications like museum and art gallery light monitoring. User customization allows you to set the frequency of readings and the ability to set thresholds for notifications and alerts by SMS text, email or voice call from the system.
Suggested Application Uses for This Sensor
- rt gallery light metering
- Museum light metering
- Greenhouse solar and light level tracking
Spesification
LUX Sensor Specifications
| Sensing Technology | High Sensitivity Photodiode |
| Sensor Material | Silicon |
| Peak Wavelength | 580 nm |
| Maximum Reverse Voltage | 6 V |
| Maximum Power Dissipation | 40 mW |
| Maximum Light Current | 500 uA |
| Maximum Dark Current | 0.3 uA |
| Maximum Operating Temperature Range | -30°C to +85°C |
| Measurement Range | -30°C to +85°C |
| Weight | 3.7 oz |
AA Specifications
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
