Description
Product Description

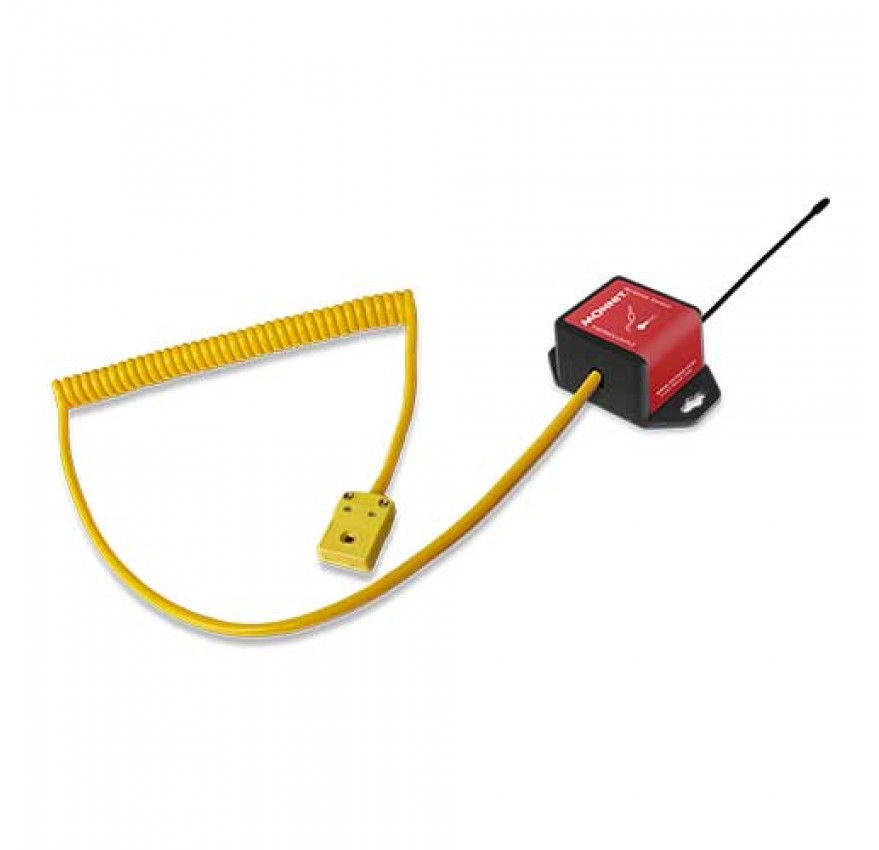

The Wireless Thermocouple Sensor is available with a hardwired thermocouple or K-type connector to support various thermocouple types and ranges. The hardwired thermocouple option measures temperatures up to 400°C (752°F). The K-type connector with Probe includes a needle probe that measures temperatures up to 400°C (752°F). The sensor is programmed to sleep for a user-given time interval (heartbeat) and then wakeup, send power to the thermocouple and wait for it to stabilize, and convert the analog data, mathematically compute the temperature and transmit the data to the gateway. To stay within the abilities of the processor, the temperature is computed off a data table provided by the manufacturer.
Suggested Application Uses for This Sensor
- Ovens and cooking device monitoring
- Food Temperature Monitoring
- Chimney and Flu Temperature Monitoring
Spesification
Thermocouple Specifications
| Thermocouple Connection Options | 6 ft hardwired probe / 5 ft K-type connector |
| K-Type Fixed Probe - Accuracy above 0°C | +/- 2.2°C or 0.75% (whichever is greater) |
| K-Type Fixed Probe - Accuracy below 0°C | +/- 2.2°C or 2.0% (whichever is greater) |
| K-Type Fixed Probe - Temperature Range | -100°C to +400°C ( -148°F to +752°F ) |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F) |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency | |||
| Certifications |
|
|||
